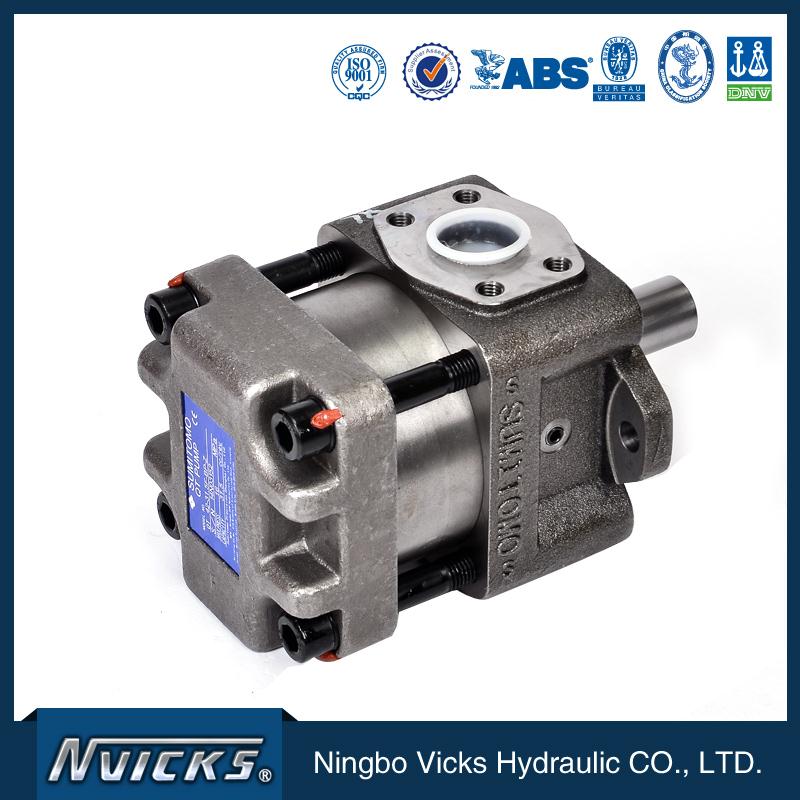

Cadaadiska Sare ee QT52 Sumitomo Gear Pump ee Mashiinka Durida
Sumitomo Hydraulic Gear Pump ee Nidaamka Servo
Tilmaamaha
Sumitomo QT-taxane bamka gear-ka waxaa si weyn loogu isticmaalaa mashiinnada wax-ka-qaabaynta duritaanka, mashiinnada been-abuurka ah iyo wiishashka iyo qalabka kale ee farsamada.
Astaamaha
■ 1. waxqabadka sanqadh yar
Taxanaha QT ee geerka guduhu waa siman yihiin oo carrab la'aan, iyo sifooyinkooda aadka u wanaagsan waxaa si gaar ah loogu talagalay geerka. Codku aad buu u hooseeyaa marka la isticmaalo, welina codku waa siman yahay xitaa xawaare sare.
■ 2, caabbinta xirashada orodka sare
Marka lagu daro qaab dhismeedka fudud ee farsamada, isticmaalka saliidda sare ee hydraulic waxay yarayn kartaa dusha sare ee farsamada iyo jeexjeexyada qaybaha shaqada. QT gear chestnut wuxuu ku ordi karaa cadaadis sare oo ah 320bar cadaadiska, xitaa haddii isticmaalka saliidda guud ee biyaha, ma fududa in la xidho qaybo.
■ 3, garaaca cadaadiska hoose
Bamka QT gear wuxuu ku dhawaad gabi ahaanba ka saari karaa mowjadda cadaadiska, waxaa loo isticmaali karaa sida nidaamka saxda ah ee xakamaynta cadaadiska qalabka mashiinka ugu fiican.
Cabirka Rakibaadda
| Qaabka | A | B | ∅C | ∅D | E | furaha ballac x dhererka | Q | 2-∅H | ∅G | J | K | V | |||
| QT42-31.5 | 68 | 7 | 0 ∅101.6-0.05 | +0.011 ∅32-0.025 | 35 | 0 ∅10-0.036 x50 | 4 | 2-∅14.5 | ∅146 | 58 | 115 | 114 | |||
| QT42-40 | |||||||||||||||
| QT52-50 | 92 | 7 | 0 ∅127-0.05 | +0.011 ∅40-0.025 | 43 | 0 ∅12-0.043 x70 | 6 | 2-∅18.5 | ∅181 | 82 | 145 | 136 | |||
| QT52-63 | |||||||||||||||
| QT62-80 | 92 | 7 | 0 ∅152.4-0.05 | +0.011 ∅50-0.025 | 53.5 | 0 ∅14-0.043 x70 | 6 | 2-∅23 | ∅228.6 | 82 | 154 | 174.5 | |||
| QT62-100 | |||||||||||||||
| QT62-125 | |||||||||||||||
| Qaabka | L | ∅N | O | R | T | U | ∅S | W | X | M1 | ∅P | Y | Z | M2 | ||
| QT42-31.5 | 256 | ∅125 | 16 | 172 | 139 | 75 | ∅38 | 69.9 | 35.7 | M12 qoto dheer 25 | ∅25 | 52.4 | 26.2 | M10 qoto dheer 20 | ||
| QT42-40 | ||||||||||||||||
| QT52-50 | 313 | ∅150 | 20 | 214 | 170 | 93 | ∅50 | 77.8 | 42.9 | M12 qoto dheer 25 | ∅32 | 58.7 | 30.2 | M10 qoto dheer 20 | ||
| QT52-63 | ||||||||||||||||
| QT62-80 | 373 | ∅190 | 24 | 266 | 216 | 118 | ∅63 | 88.9 | 50.8 | M12 qoto dheer 25 | ∅38 | 69.9 | 35.7 | M10 qoto dheer 20 | ||
| QT62-100 | ||||||||||||||||
| QT62-125 | ||||||||||||||||
