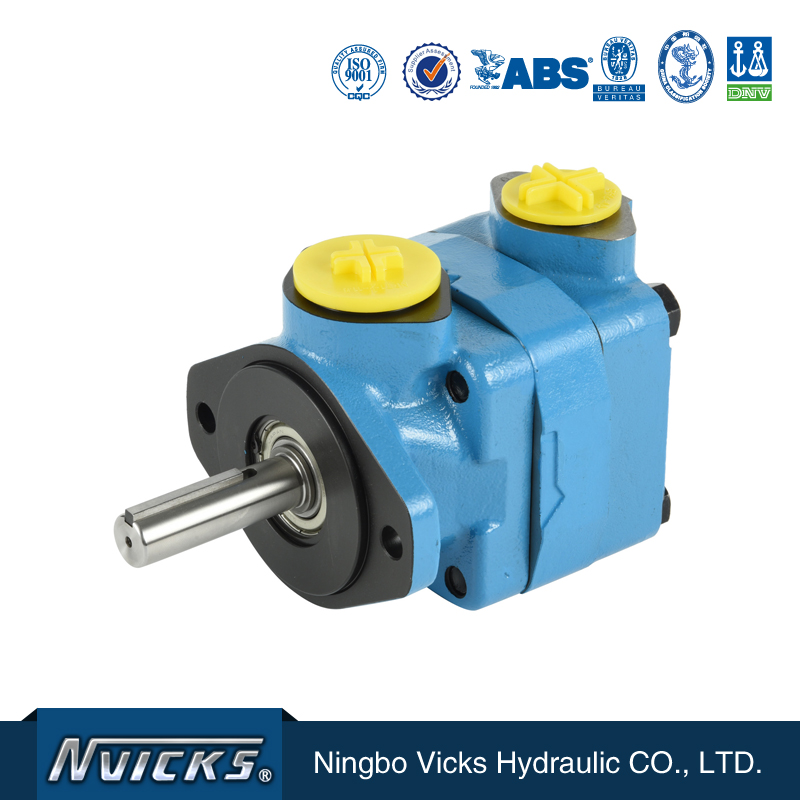

V10 Series Single Pump High Quality Vane Pump for Forklift
V10 Series Fixed displacement hydraulic pump
Feature:
1. Pressure-balanced, modular design reduces noise, extends life and improves serviceability
2. Wide range of available displacements allows for broader range of applications
3. 12-vane system and intra-vane design reduce flow pulsations and noise
Application: Power Units, Power Steering, Skid Steerers, Lift Trucks, Balers
Our company
Our company is general channel business of Taiwan Delta, Austria KEBA product industry. Its the strategic partner of Phase servo motor,Yunshen servo motor, Haitain drive and Sumitomo pump.
Ningbo Vicks adhering to the development path of introduction, innovation and transcendence, and the business philosophy of high quality, high efficiency, low consumption, safety. Our company has became a world-renowned hydraulic pump manufacturer and one-stop solution expert of servo energy saving.
Model Designation
| (F3-) | V10 | -P | 7 | S | -1 | C | 20 | R |
| Note | Series | Inlet Connection | Displacement | Oulet Connection | Shaft type | Outlet positions |
Design number |
Rotation Direction |
| Water-oil emulsons Water glacol fluid F3 phosphate ester fluid |
V10 | P-1" NPT Thread S-1.3125-12 Straight B-G1" Thread |
1、2、3、4、5、6、7 | P-1/2" NPT Thread S-0.750-16 Str. Thread B-G1/2" Thread |
1- Key Straight Shaft 11- Spline Shaft 38-11 teeth-3/4" outside spline 62-spline shaft (only for V20) |
(Views from cover end of pump) A-Opposite inlet port B-90°CCW from inlet C-Inline with inlet D-90°CW from inlet |
20 | (Views from shaft end of pump) R-right hand for clockwise |
| V20 | P-1-1/4" NPT Thread S-1.625-12 Straight B-G1-1/4" Thread |
6、7、8、9、10、11、12、13 | P-3/4" NPT Thread S-1.625-12 Straight R-1.1875-12 Straight B-G3/4" Thread |
10 |
Technical Data
| Series | Displacement code | Geometric displace-ment mL/r | With antiwear hydraulic oil or phosphate ester fluid | With water glycol fluid | With water-oil emulsions | |||
| Max. pressure Mpa | Max. Speed r/min |
Max. pressure Mpa | Max. Speed r/min |
Max. pressure Mpa | Min. speed r/min | |||
| V10 | 1 | 3.3 | 17.2 | 4800 | 12.4 | 1800 | 10.3 | 1800 |
| 2 | 6.6 | 4500 | ||||||
| 3 | 9.8 | 4000 | ||||||
| 4 | 13.1 | 3400 | ||||||
| 5 | 16.4 | 3200 | ||||||
| 6 | 19.5 | 15.2 | 3000 | 10.9 | ||||
| 7 | 22.8 | 13.8 | 2800 | |||||
| V20 | 6 | 19.5 | 17.2 | 3400 | 12.4 | 1800 | 10.9 | 1800 |
| 7 | 22.8 | 3000 | ||||||
| 8 | 26.5 | 2800 | ||||||
| 9 | 29.7 | |||||||
| 10 | 30 | |||||||
| 11 | 36.4 | 2500 | 10.9 | |||||
| 12 | 39 | 15.2 | 2400 | 9.3 | ||||
| 13 | 42.4 | |||||||
More pics
Application
Advanced Equipment
Certificate
Our services
RFQ
1. Customer: Can I get 1pcs sample to test the quality?
Vicks Hydraulic: Yes, we would like to sell 1pcs sample for you to test.
2. Customer: If there is something technical problem, how do you to help us.
Vicks Hydraulic: we will send you video and operations guide, which we will teach you to understand how to solve it.
3. Customer: How many days for mass production?
Vicks Hydraulic: About 25-35days after the order is confirmed.
