Super Lowest Price V20 Series Single Pump Wholesale to Madagascar Detail:

V20 Series Fixed displacement hydraulic vane pump

Feature:
1. Pressure-balanced, modular design reduces noise, extends life and improves serviceability
2. Wide range of available displacements allows for broader range of applications
3. 12-vane system and intra-vane design reduce flow pulsations and noise
Application: Power Units, Power Steering, Skid Steerers, Lift Trucks, Balers

(F3-)	V10	-P	7	S	-1	C	20	R
Note	Series	Inlet Connection	Displacement	Oulet Connection	Shaft type	Outlet positions	Design number	Rotation Direction
Water-oil emulsons Water glacol fluid F3 phosphate ester fluid	V10	P-1" NPT Thread S-1.3125-12 Straight B-G1" Thread	1、2、3、4、5、6、7	P-1/2" NPT Thread S-0.750-16 Str. Thread B-G1/2" Thread	1- Key Straight Shaft 11- Spline Shaft 38-11 teeth-3/4" outside spline 62-spline shaft (only for V20)	(Views from cover end of pump) A-Opposite inlet port B-90°CCW from inlet C-Inline with inlet D-90°CW from inlet	20	(Views from shaft end of pump) R-right hand for clockwise L-left hand for counter-clockwise
	V20	P-1-1/4" NPT Thread S-1.625-12 Straight B-G1-1/4" Thread	6、7、8、9、10、11、12、13	P-3/4" NPT Thread S-1.625-12 Straight R-1.1875-12 Straight B-G3/4" Thread			10

Series	Displacement code	Geometric displace-ment mL/r	With antiwear hydraulic oil or phosphate ester fluid		With water glycol fluid		With water-oil emulsions
			Max. pressure Mpa	Max. Speed r/min	Max. pressure Mpa	Max. Speed r/min	Max. pressure Mpa	Min. speed r/min
V20	6	19.5	17.2	3400	12.4	1800	10.9	1800
	7	22.8		3000
	8	26.5		2800
	9	29.7
	10	30
	11	36.4		2500	10.9
	12	39	15.2	2400			9.3
	13	42.4

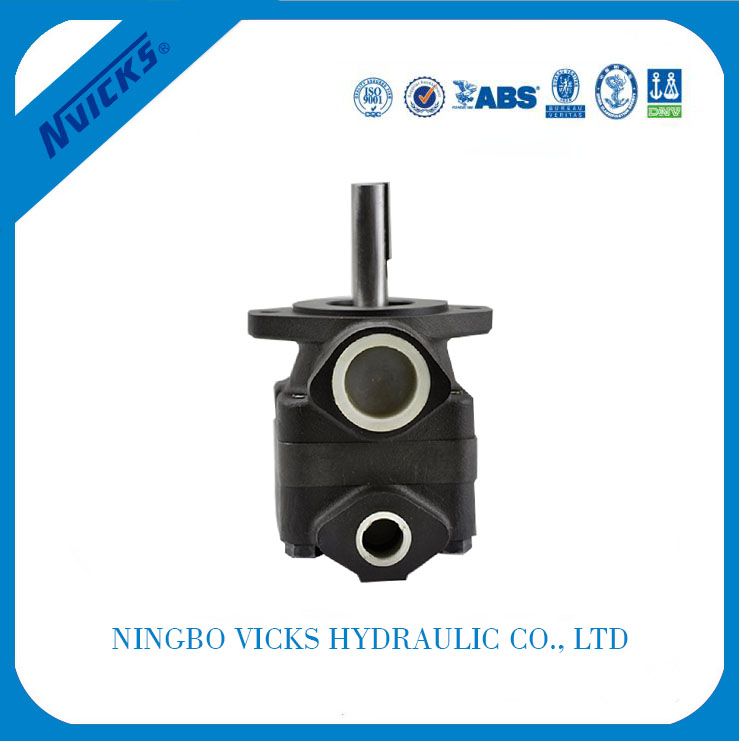

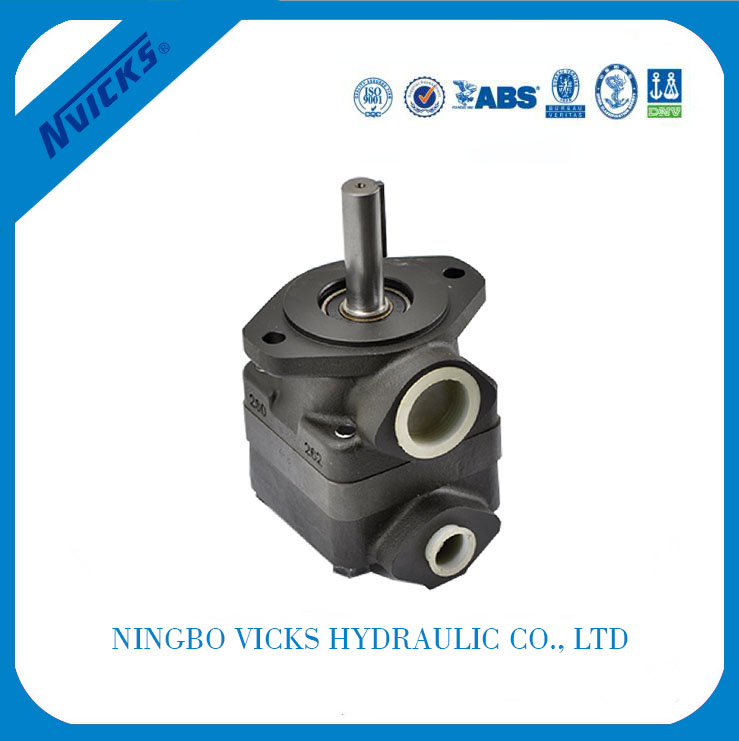

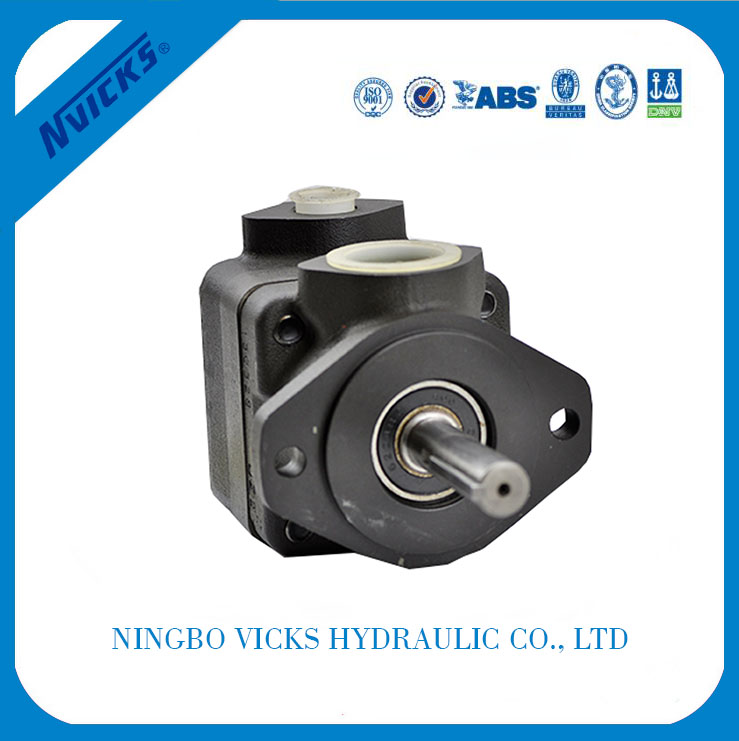

Product detail pictures:
