Ordinary Discount V10 Series Single Pump to Russia Manufacturers Detail:
V10 Series Fixed displacement hydraulic pump
Feature:
1. Pressure-balanced, modular design reduces noise, extends life and improves serviceability
2. Wide range of available displacements allows for broader range of applications
3. 12-vane system and intra-vane design reduce flow pulsations and noise
Application: Power Units, Power Steering, Skid Steerers, Lift Trucks, Balers
Model Designation
| (F3-) | V10 | -P | 7 | S | -1 | C | 20 | R |
| Note | Series | Inlet Connection | Displacement | Oulet Connection | Shaft type | Outlet positions |
Design number |
Rotation Direction |
| Water-oil emulsons Water glacol fluid F3 phosphate ester fluid |
V10 | P-1" NPT Thread S-1.3125-12 Straight B-G1" Thread |
1、2、3、4、5、6、7 | P-1/2" NPT Thread S-0.750-16 Str. Thread B-G1/2" Thread |
1- Key Straight Shaft 11- Spline Shaft 38-11 teeth-3/4" outside spline 62-spline shaft (only for V20) |
(Views from cover end of pump) A-Opposite inlet port B-90°CCW from inlet C-Inline with inlet D-90°CW from inlet |
20 |
(Views from shaft end of pump) R-right hand for clockwise |
| V20 | P-1-1/4" NPT Thread S-1.625-12 Straight B-G1-1/4" Thread |
6、7、8、9、10、11、12、13 | P-3/4" NPT Thread S-1.625-12 Straight R-1.1875-12 Straight B-G3/4" Thread |
10 |
Technical Data
| Series | Displacement code |
Geometric displace-ment mL/r | With antiwear hydraulic oil or phosphate ester fluid | With water glycol fluid | With water-oil emulsions | |||
| Max. pressure Mpa | Max. Speed r/min |
Max. pressure Mpa | Max. Speed r/min |
Max. pressure Mpa | Min. speed r/min | |||
| V10 | 1 | 3.3 | 17.2 | 4800 | 12.4 | 1800 | 10.3 | 1800 |
| 2 | 6.6 | 4500 | ||||||
| 3 | 9.8 | 4000 | ||||||
| 4 | 13.1 | 3400 | ||||||
| 5 | 16.4 | 3200 | ||||||
| 6 | 19.5 | 15.2 | 3000 | 10.9 | ||||
| 7 | 22.8 | 13.8 | 2800 | |||||
| V20 | 6 | 19.5 | 17.2 | 3400 | 12.4 | 1800 | 10.9 | 1800 |
| 7 | 22.8 | 3000 | ||||||
| 8 | 26.5 | 2800 | ||||||
| 9 | 29.7 | |||||||
| 10 | 30 | |||||||
| 11 | 36.4 | 2500 | 10.9 | |||||
| 12 | 39 | 15.2 | 2400 | 9.3 | ||||
| 13 | 42.4 | |||||||

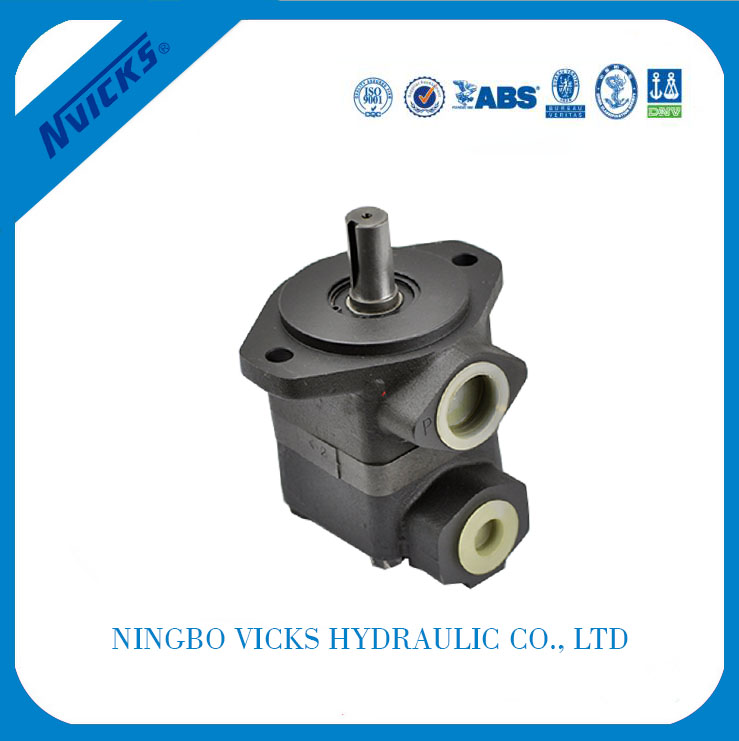

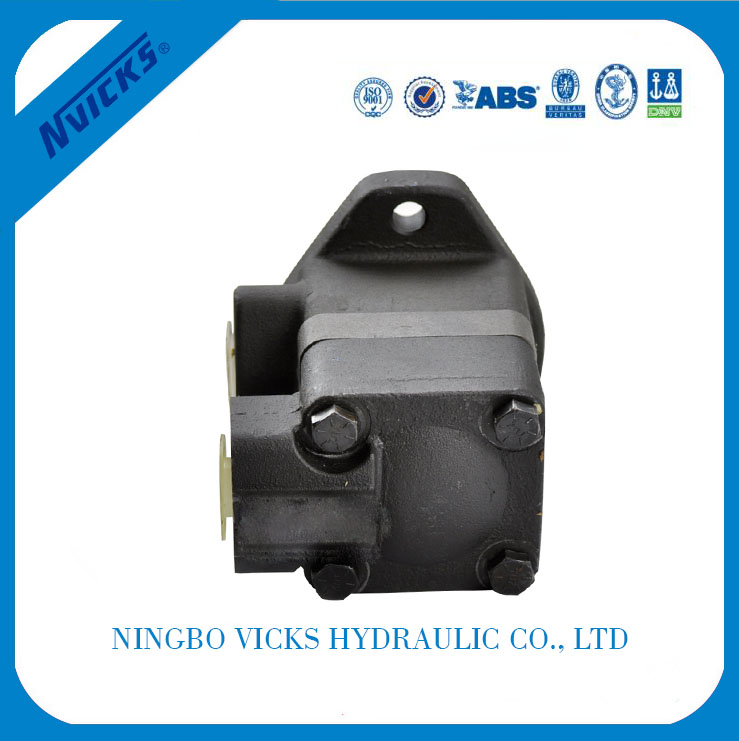

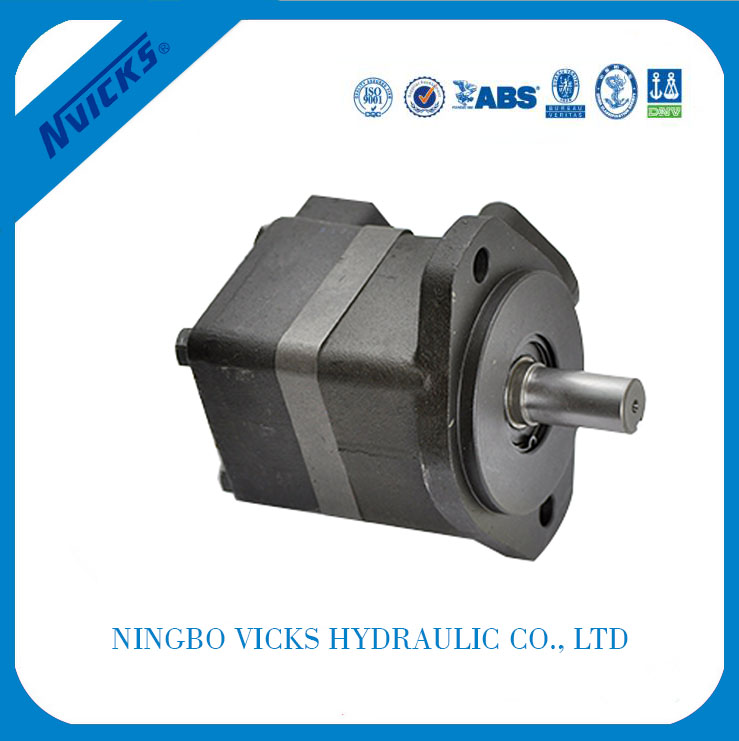

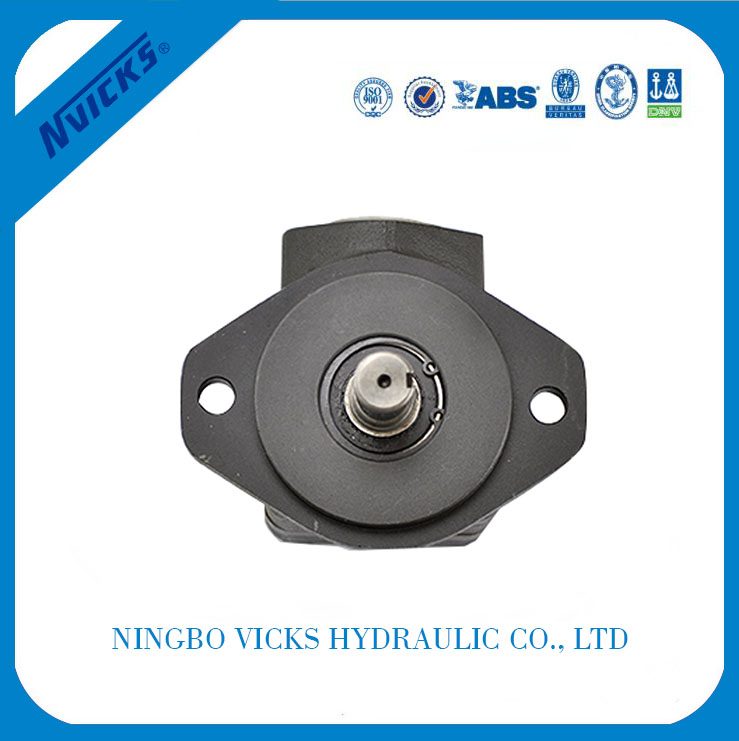

Product detail pictures:
