Factory Price T6 Series Treble Pump to Bulgaria Manufacturers Detail:
T6, T7 Series-pin Vane Pump
High pressure and high performance dowel pin type vane pumps widely used for plastic machinery, casting machinery, metallurgy machinery, pressing machinery, refining machinery, construction machinery, marine-machinery.
Features
1. With dowel pin vane structure, it can work in high pressure, low noise and long lifetime
2. This vane pump can fit wide viscosity hydraulic medium, and be started at low temperature and worked at high temperature.
3. As the vane pump adopts bilabial vane, it has high oil pollution resistance and wide speed scope.
T6﹑T67﹑T7 Series- Treble pumps
< Model Designation
| T6DCC | (M) | -042 | -017 | -010 | -1 | R | 02 | -A | 1 | 01 |
| Series | Type Code |
Flow-shaft end Pump | Flow-mid pump | Flow-cover end pump | Shaft type |
Rotation | Port positions |
Design number |
Sealing Level |
Port dimensions |
| T67DBB | NO: industrial type M: truck type S: truck type, SAE SAE C J744 installation flange |
014/B14﹑017/B17﹑020/B20﹑024/B24﹑028/B28﹑031/B31﹑035/B35﹑038/B38﹑042/B42﹑045/B45﹑050/B50﹑061 | B02﹑B03﹑B04﹑B05﹑B06﹑B07﹑B08﹑B10﹑B12﹑B15 | B02﹑B03﹑B04﹑B05﹑B06﹑B07﹑B08﹑B10﹑B12﹑B15 |
See size of shaft |
(Views from shaft end of pump)
|
see picture below |
A |
1-S1 NBR Nitrile rubber
|
NO |
| T67DCB | 014/B14﹑017/B17﹑020/B20﹑024/B24﹑028/B28﹑031/B31﹑035/B35﹑038/B38﹑042/B42﹑045/B45﹑050/B50﹑061 | 003/B03、005/B05、006/B06、008/B08、010/B10、012/B12、014/B14、017/B17、020/B20、022/B22、025/B25、028/B28、031/B31 | B02﹑B03﹑B04﹑B05﹑B06﹑B07﹑B08﹑B10﹑B12﹑B15 | |||||||
| T6DCC | 014/B14﹑017/B17﹑020/B20﹑024/B24﹑028/B28﹑031/B31﹑035/B35﹑038/B38﹑042/B42﹑045/B45﹑050/B50﹑061 | 003/B03、005/B05、006/B06、008/B08、010/B10、012/B12、014/B14、017/B17、020/B20、022/B22、025/B25、028/B28、031/B31 | 003/B03、005/B05、006/B06、008/B08、010/B10、012/B12、014/B14、017/B17、020/B20、022/B22、025/B25、028/B28、031/B31 |
00、01, See installation dimensions |
||||||
| T67DDB | 014/B14﹑017/B17﹑020/B20﹑024/B24﹑028/B28﹑031/B31﹑035/B35﹑038/B38﹑042/B42﹑045/B45﹑050/B50﹑061 | 014/B14﹑017/B17﹑020/B20﹑024/B24﹑028/B28﹑031/B31﹑035/B35﹑038/B38﹑042/B42﹑045/B45﹑050/B50﹑061 | B02﹑B03﹑B04﹑B05﹑B06﹑B07﹑B08﹑B10﹑B12﹑B15 | NO | ||||||
| T6DDC | 014/B14﹑017/B17﹑020/B20﹑024/B24﹑028/B28﹑031/B31﹑035/B35﹑038/B38﹑042/B42﹑045/B45﹑050/B50﹑061 | 014/B14﹑017/B17﹑020/B20﹑024/B24﹑028/B28﹑031/B31﹑035/B35﹑038/B38﹑042/B42﹑045/B45﹑050/B50﹑061 | 003/B03、005/B05、006/B06、008/B08、010/B10、012/B12、014/B14、017/B17、020/B20、022/B22、025/B25、028/B28、031/B31 |
00、01, See installation dimensions |
||||||
| T67EDB | 042﹑045﹑050﹑ 052﹑057﹑062﹑ 066﹑072﹑085 |
014/B14﹑017/B17﹑020/B20﹑024/B24﹑028/B28﹑031/B31﹑035/B35﹑038/B38﹑042/B42﹑045/B45﹑050/B50﹑061 | B02﹑B03﹑B04﹑B05﹑B06﹑B07﹑B08﹑B10﹑B12﹑B15 | NO | ||||||
| T6EDC | 042﹑045﹑050﹑ 052﹑057﹑062﹑ 066﹑072﹑085 |
014/B14﹑017/B17﹑020/B20﹑024/B24﹑028/B28﹑031/B31﹑035/B35﹑038/B38﹑042/B42﹑045/B45﹑050/B50﹑061 | 003/B03、005/B05、006/B06、008/B08、010/B10、012/B12、014/B14、017/B17、020/B20、022/B22、025/B25、028/B28、031/B31 |
00、01, See installation dimensions |
003/B03： In displacement code, 0 means single steering valve plate structure, B means the two steering valve plate strucrure.
The data of relevant series, model are unanimous. Please see T6 series-single pumps data
Installation Dimensions
Shaft exttension
| Model | Shaft code |
Max torque (N.m) |
L1 | L2 | DIA | K1xK2 | H1 | M1 |
| T6DCC T67DBB T67DCB |
1 | 721 | 83.6 | 49.3 | 31.750/31.700 | 6.35×6.30 | 34.6 | - |
| 2 | 1108 | 89.7 | 50.8 | 38.100/38.075 | 9.52×9.47 | 42.4 | - | |
| 3 | ● | 55.2 | 38.0 | SAE J498b class1, Diametral pitch 12/24, 14T | - | |||
| 4 | ● | 61.0 | 31.5 | SAE J498b class1, Diametral pitch 12/24, 17T | - | |||
| T6DCC | 6 | ● | 76.0 | 48.0 | SAE J498b class1, Diametral pitch 12/24, 14T | - | ||
● work at maximum flow and pressure
| Oil port | Flange | Install Dimensions(mm) | ||||||
| A1 | B1 | ∅C1 | D1 | T1 Thread | ||||
T67DBB T67DCB |
P1 | 1-1/4" | F10 | 30.2 | 58.7 | 31.8 | 82.6 | 7/16"-14UNCx22.3 |
| P2 | 1" | F08 | 26.2 | 52.4 | 25.4 | 101.6 | 3/8"-16UNCx19.0 | |
| P3 | 3/4" | F06 | 22.2 | 47.6 | 19.0 | 74.7 | 3/8"-16UNCx19.0 | |
| S | 4" | F32 | 77.8 | 130.2 | 101.6 | 127 | 5/8"-11UNCx30.0 | |
| T6DCC | P1 | 1-1/4" | F10 | 30.2 | 58.7 | 31.8 | 82.6 | 7/16"-14UNCx22.3 |
| P2 | 1" | F08 | 26.2 | 52.4 | 25.4 | 101.6 | 3/8"-16UNCx19.0 | |
| P3 | 01: 3/4" | F06 | 22.2 | 47.6 | 19.0 | 74.7 | 3/8"-16UNCx19.0 | |
| 00: 1" | F08 | 26.2 | 52.4 | 25.4 | 74.7 | |||
| S | 4" | F32 | 77.8 | 130.2 | 101.6 | 127 | 5/8"-11UNCx30.0 | |
Shaft extension
| Model | Shaft code |
Max torque (N.m) |
L1 | L2 | DIA | K1xK2 | H1 | M1 |
| T6DDC T67DDB(S) |
1 | 686 | 84.0 | 49.3 | 31.750/31.700 | 7.94×7.89 | 35.27 | M10x20 |
| 2 | 1148 | 91.0 | 50.8 | 38.100/38.075 | 9.52×9.47 | 42.36 | M10x20 | |
| 5 | 883 | 84.0 | 60.0 | 34.900/34.850 | 7.94×7.89 | 38.42 | M10x20 | |
| 3 | 971 | 56.0 | 38.0 | SAE J498b class1, Diametral pitch 12/24, 14T | - | |||
| 4 | ● | 46.0 | 31.5 | SAE J498b class1, Diametral pitch 12/24, 17T | - | |||
● work at maximum flow and pressure
| Oil port | Flange | Install Dimensions(mm) | ||||||
| A1 | B1 | ∅C1 | D1 | T1 Thread | ||||
| T67DDB(S) | P1 | 1-1/4" | F10 | 30.2 | 58.7 | 31.8 | 82.6 | 7/16"-14UNCx22.3 |
| P2 | 1-1/4" | F10 | 30.2 | 58.7 | 31.8 | 101.6 | 7/16"-14UNCx24.0 | |
| P3 | 3/4" | F06 | 22.2 | 47.6 | 19.0 | 74.7 | 3/8"-16UNCx19.0 | |
| S | 4" | F32 | 77.8 | 130.2 | 101.6 | 115.0 | 5/8"-11UNCx30.0 | |
| T6DDC | P1 | 1-1/4" | F10 | 30.2 | 58.7 | 31.8 | 82.6 | 7/16"-14UNCx22.3 |
| P2 | 1-1/4" | F10 | 30.2 | 58.7 | 31.8 | 101.6 | 7/16"-14UNCx24.0 | |
| P3 | 01: 3/4" | F06 | 22.2 | 47.6 | 19.0 | 74.7 | 3/8"-16UNCx19.0 | |
| 00: 1" | F08 | 26.2 | 52.4 | 25.4 | 74.7 | |||
| S | 4" | F32 | 77.8 | 130.2 | 101.6 | 115.0 | 5/8"-11UNCx30.0 | |
Shaft extension
| Model | Shaft code |
Max torque (N.m) |
L1 | L2 | DIA | K1xK2 | H1 | M1 |
| T67EDB﹑T6EDC﹑ T6EDCS |
1 | ● | 92.0 | 63.0 | 45h7 | 45h7 | 48.5 | M12x24 |
| T6EDCS | 2 | ● | 100.0 | 63.5 | 44.45/44.40 | 11.11×11.06 | 49.3 | 1/2-UNCx24 |
| 3 | ● | 75.0 | 48.8 | SAE J498b class1, Diametral pitch 8/16, 13T | - | |||
● work at maximum flow and pressure
| Oil port | Flange | Install Dimensions(mm) | ||||||
| A1 | B1 | ∅C1 | D1 | T1 Thread | ||||
| T67EDB | P1 | 1-1/2" | F12 | 35.7 | 69.9 | 37.1 | 139.7 | 1/2"-13UNCx30.0 |
| P2 | 1-1/4" | F10 | 30.2 | 58.7 | 31.8 | 101.6 | 7/16"-14UNCx24.0 | |
| P3 | 3/4" | F06 | 22.2 | 47.6 | 19.0 | 74.7 | 3/8"-16UNCx19.0 | |
| S | 4" | F32 | 77.8 | 130.2 | 101.6 | 115.0 | 5/8"-11UNCx30.0 | |
| T6EDC T6EDCS |
P1 | 1-1/2" | F12 | 35.7 | 69.9 | 37.1 | 139.7 | 1/2"-13UNCx30.0 |
| P2 | 1-1/4" | F10 | 30.2 | 58.7 | 31.8 | 101.6 | 7/16"-14UNCx24.0 | |
| P3 | 01: 3/4" | F06 | 22.2 | 47.6 | 19.0 | 74.7 | 3/8"-16UNCx19.0 | |
| 00: 1" | F08 | 26.2 | 52.4 | 25.4 | 74.7 | |||
| S | 4" | F32 | 77.8 | 130.2 | 101.6 | 115.0 | 5/8"-11UNCx30.0 | |

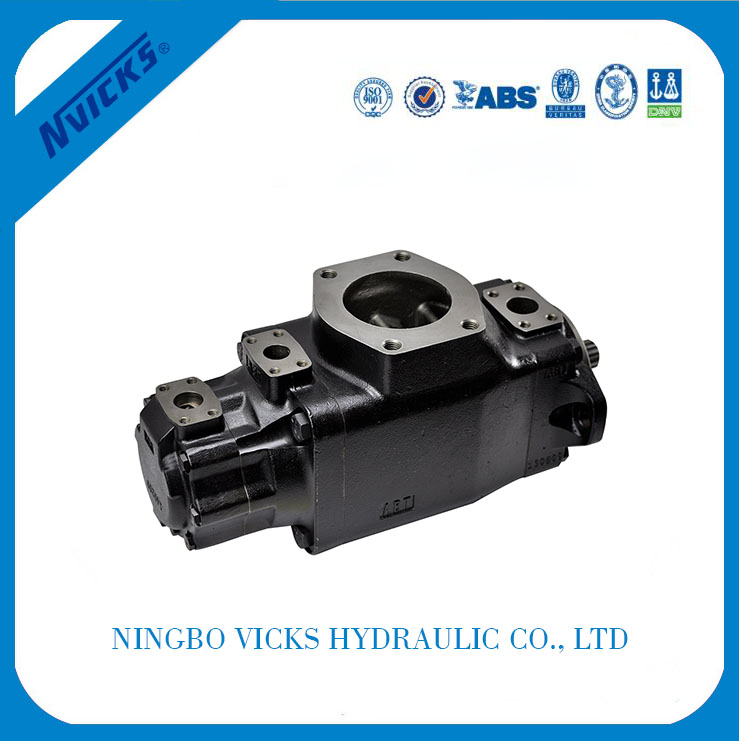

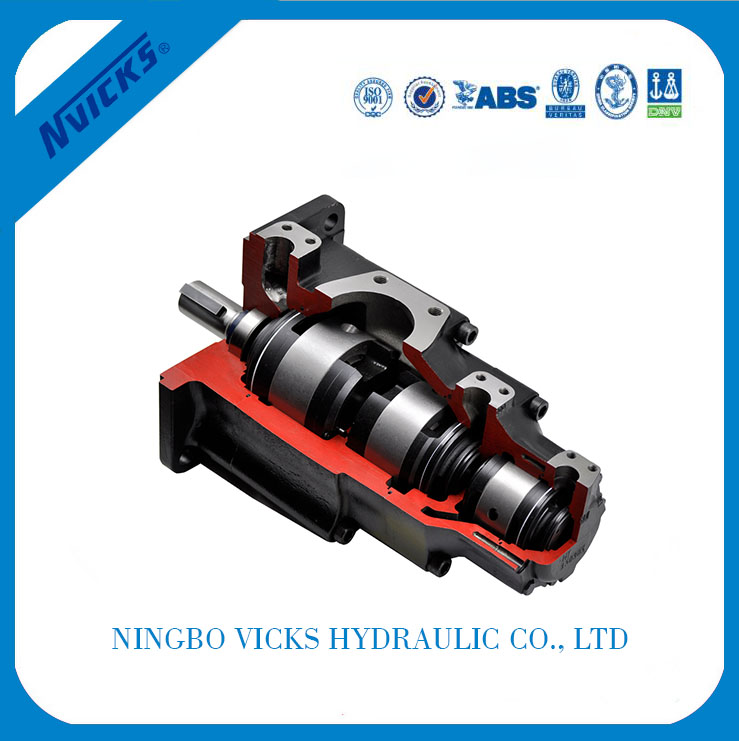

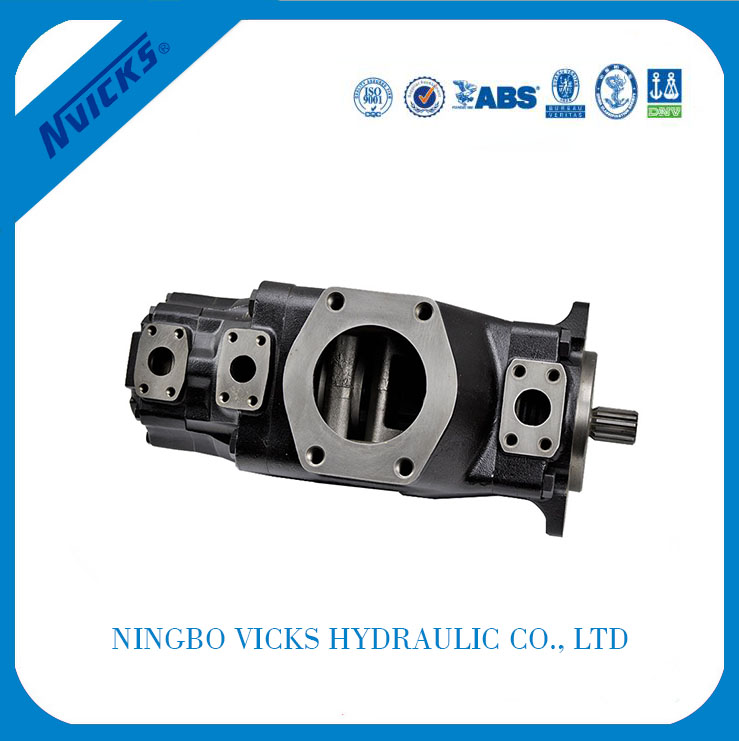

Product detail pictures:
