High Performance Intra vane Pumps for plastic injection machinery, Tool machinery, Die casting machinery and Metallurgy equipment.
Features
1.Intra vane pumps with hydraulic balancing structure provide more stable performance and longer life since less pressure from vane on stator.
2.Twelve vane system provide low amplitude flow pulsation resulting in low system noise characteristics.
3.Various displacement and shaft with 4 different outlet opposite position
4.The cartridge is independent of the drive shaft, allowing for easy servicing without remove the pump from its mounting.
Model Designation
| (F3-) | 3525V | 38 | A | 17 | -1 | AB | 22 | R |
| Note | Series | ▼ Flow-Shaft end pump | Port connection |
▼ Flow-cover end pump |
Shaft type | Outlet Position |
Design number |
Rotation |
| No-marking: Petroleum series oil emulsification fluid water glycol-fluid F3: phosphate ester fluid |
2520V | 10、12、14、15、17、 19、21、25 |
A-SAE A-SAE 4-bolt flange |
2、3、4、5、6、7、8、9、10、11、12、14 | 1-Str key 86-HD Str key 11-Spline |
See below | 22 | (Views from shaft end of pump) R-right hand for clockwise L-left hand for counter-clockwise |
| 3520V | 21、25、30、32、35、 38、45 |
2、3、4、5、6、7、8、9、10、11、12、14 | ||||||
| 3525V | 21、25、30、32、35、 38、45 |
10、12、14、15、17、19、21、25 | ||||||
| 4520V | 42、45、50、57、60、 66、75 |
2、3、4、5、6、7、8、9、10、11、12、14 | ||||||
| 4525V | 42、45、50、57、60、 66、75 |
10、12、14、15、17、19、21、25 | ||||||
| 4535V | 42、45、50、57、60、 66、75 |
21、25、30、32、35、38、45 |
Installation Dimensions
| Model | ∅a x full thread depth, 4 holes | ∅b x full thread depth, 4 holes | ∅b x full thread depth, 4 holes | |||||||||
| 2520V | 1/2-13UNC-2Bx23.8 | 3/8-16UNC-2Bx19.1 | 3/8-16UNC-2Bx19.1 | |||||||||
| 3520V | 5/8-11UNC-2B-30.0 | 7/16-14UNC-2BX22.3 | 3/8-16UNC-2Bx19.1 | |||||||||
| 3525V | 5/8-11UNC-2B-30.0 | 7/16-14UNC-2BX22.3 | 3/8-16UNC-2Bx19.1 | |||||||||
| 4520V | 5/8-11UNC-2B-30.0 | 1/2-13UNC-2Bx23.8 | 3/8-16UNC-2Bx19.1 | |||||||||
| 4525V | 5/8-11UNC-2B-30.0 | 1/2-13UNC-2Bx23.8 | 3/8-16UNC-2Bx19.1 | |||||||||
<
| Model | A | B | C | ∅D | E | ∅F | G | H | J | ∅K | ∅L | M |
| 2520V | 50.8 | 26.2 | 12.7 | 25.4 | 52.4 | 101.60/101.55 | 9.53 | 63.5 | 88.9 | 19.1 | 14.2 | 76.2 |
| 3520V | 62 | 30.1 | 15.9 | 31.7 | 58.7 | 127.00/126.95 | 9.53 | 76.2 | 106.3 | 19.1 | 17.5 | 76.2 |
| 3525V | 62 | 30.1 | 15.9 | 31.7 | 58.7 | 127.00/126.95 | 9.53 | 76.2 | 106.3 | 25.4 | 17.5 | 74.7 |
| 4520V | 69.9 | 35.7 | 15.9 | 38.1 | 69.9 | 127.00/126.95 | 12.7 | 88.9 | 120.6 | 19.1 | 17.5 | 76.2 |
| 4525V | 69.9 | 35.7 | 15.9 | 38.1 | 69.9 | 127.00/126.95 | 12.7 | 88.9 | 120.6 | 25.4 | 17.5 | 74.7 |
| Model | N | P | Q | R | S | T | ∅U | ∅V | RW | ∅X | Y | Z |
| 2520V | 88.1 | 101.6 | 38.1 | 76.2 | 76.2 | 250 | 250 | 85.3 | 14 | 174.7 | 22.2 | 47.6 |
| 3520V | 99.6 | 114.3 | 38.1 | 82.6 | 82.6 | 273.3 | 273.3 | 88.9 | 16 | 213 | 22.2 | 47.6 |
| 3525V | 109.5 | 114.3 | 38.1 | 82.6 | 82.6 | 287.3 | 287.3 | 88.9 | 16 | 213 | 26.2 | 52.4 |
| 4520V | 120 | 119.4 | 42.9 | 93.7 | 93.7 | 303.5 | 303.5 | 102.4 | 16 | 213 | 22.2 | 47.6 |
| 4525V | 136 | 119.4 | 42.9 | 93.7 | 93.7 | 325 | 325 | 102.4 | 16 | 213 | 26.2 | 52.4 |

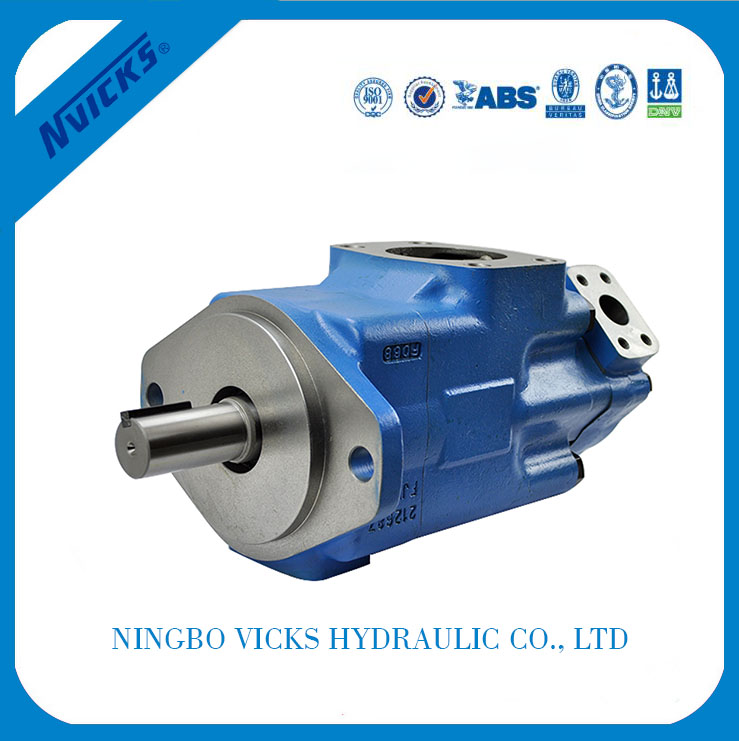

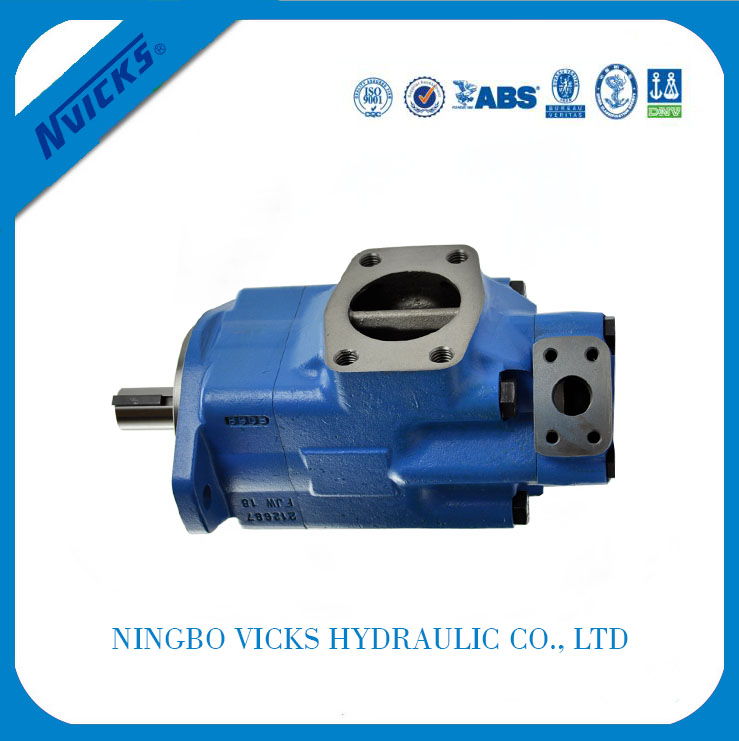

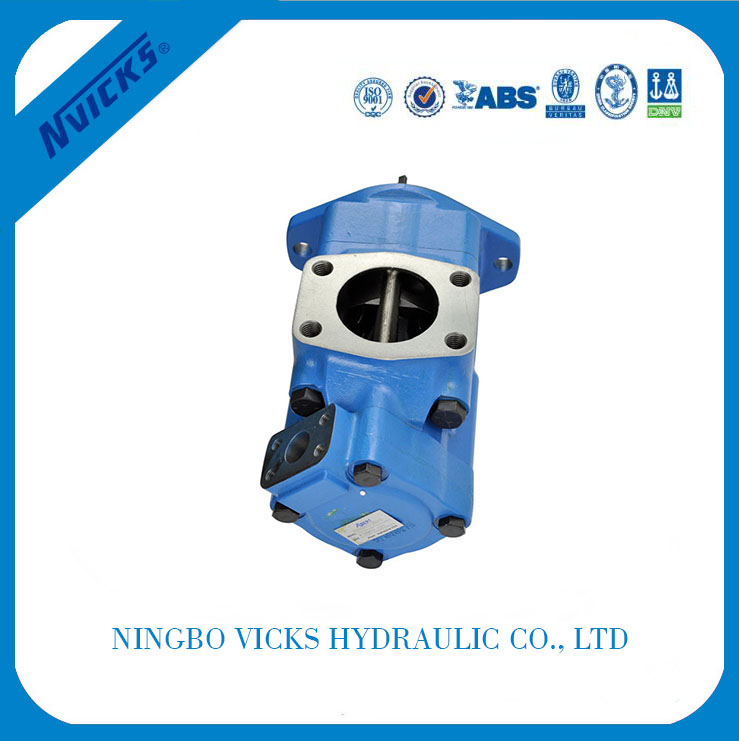

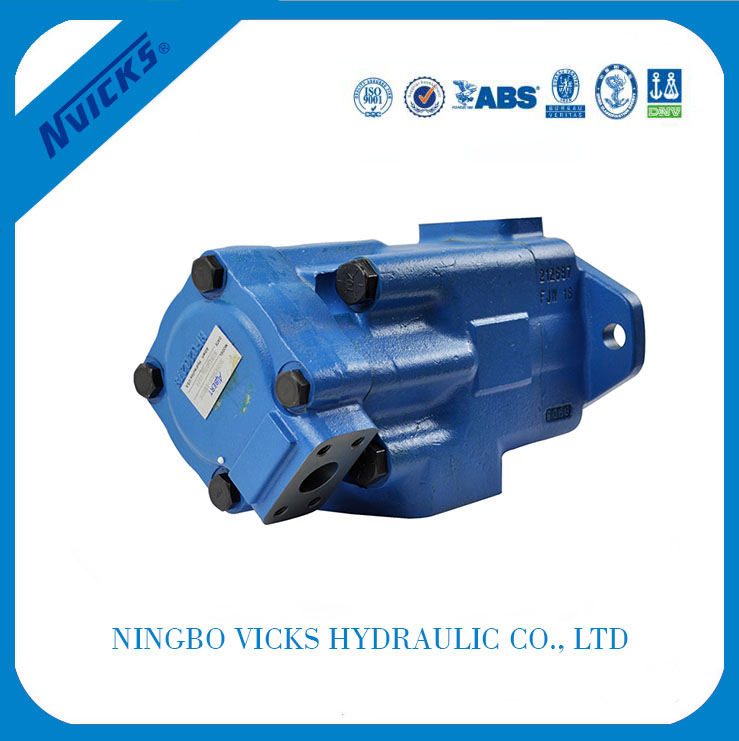

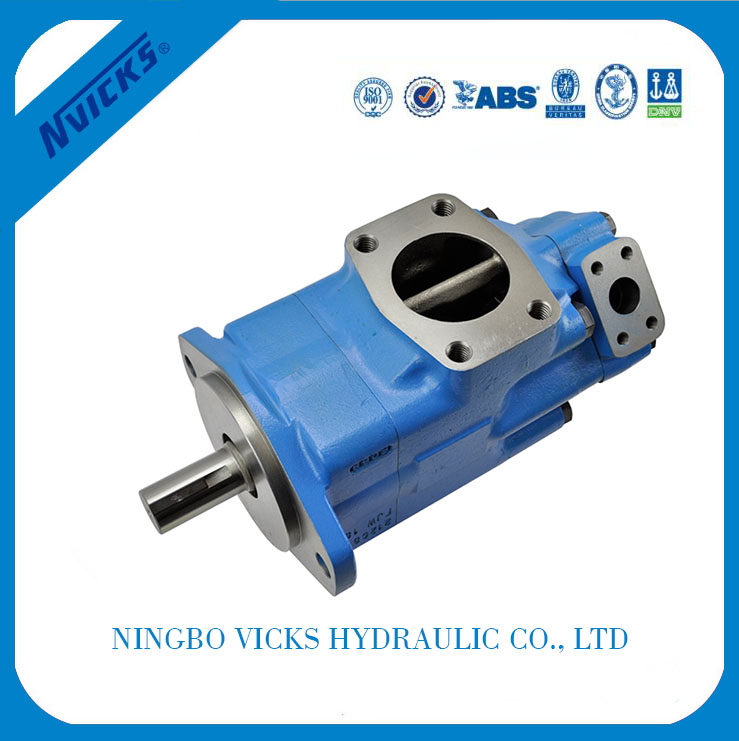

Product detail pictures:
